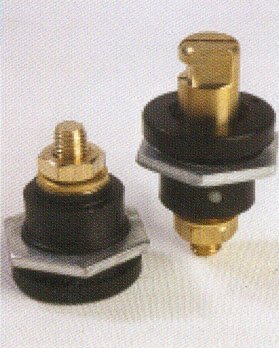

300A Panel Mounted Connectors
Spare panel mounted connector sockets for repair of heat treatment modules & heat treatment units. Supplied complete with fibre washer & lock nut.
300A Panel Mounted Connectors-reference
Stock reference:
-508-001= 300A panel mounted sockets
-508-002=300A panel mounted plugs
Splitter Cables
Splitters used to connect multiple heating elements, in parallel, to triple cable sets enable the control of multiple heating elements to be grouped to a single control output from a heat treatment unit to allow accurate zonal temperature control.
Splitter Cables-reference
Stock reference:
-32001---2 way splitter
-32002---3 way splitter
-32003---4 way splitter
-32004---5 ways splitter

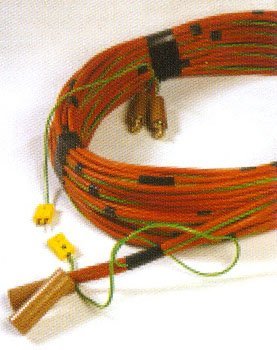

Triple Cables Sets
Use with heat treatment units controlling 30V, 40V, 60V & 80V heating elements. 2 double insulated cables for power feed & return, fitted 300A male & female connectors & 1 compensating cable fitted with type K thermocouple plug & socket.

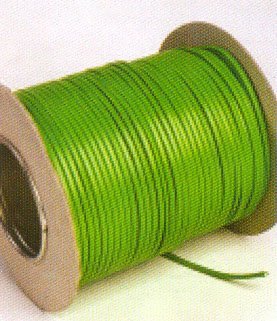

Thermocouple Compensating Cable
Use with type K thermocouple where monitoring & control thermocouple , are required for temperature monitoring purposes.
-30m lengths complete with type K thermocouple plug & socket
-100m rolls without plug & socket (plug & sockets can be supplied separately as required).

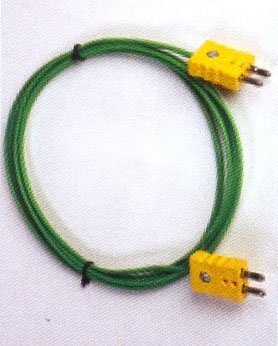

Compensating Cable Link Cables
To link controller / programmer thermocouple input to the recorder input. stock reference:
-34013---3m "jumper" compensating lead fitted with 2 type K thermocouple plugs

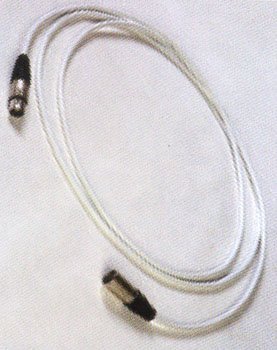

Programmer/ Contactor Controll Leads
To connect separate, external controller/ programmer units output to power source control input. Stock reference:
-33009---3m, 3-core, programmer/ contactor control lead
