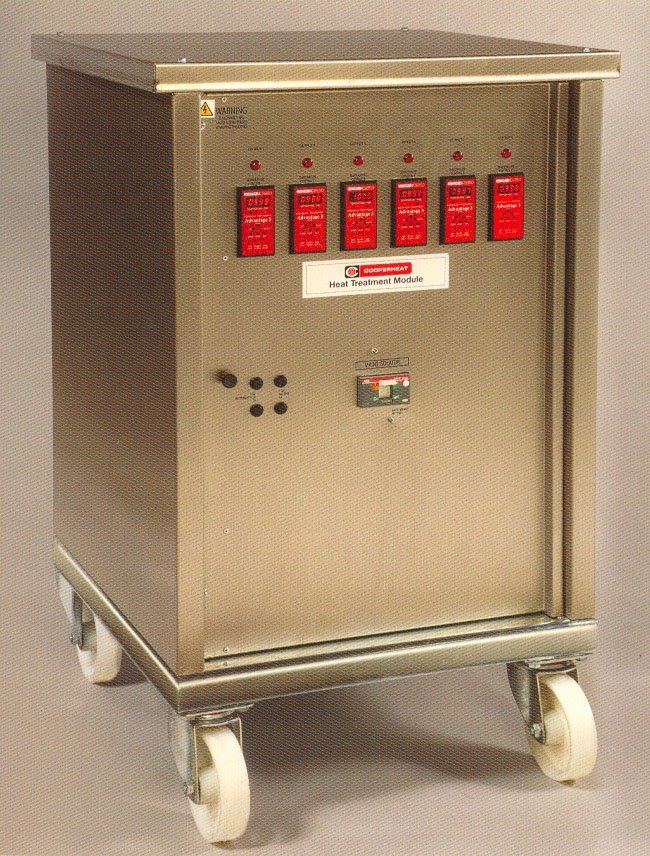

Profile

-Constructed from high-grade stainless steel giving excellent protection against corrosion, including marine offshore applications

-Large castor wheels to facilitate mobility in normal site conditions

5)Safety-CE marked in compliance with European Safety Directives

-Safe voltages employed-voltage to earth from any single output socket is 32.5V a.c

-Automatic protection against transformer coil becoming over heated, by inclusion of thermostats in the core windings

-Primary over-current protection provided by a three-phase circuit breaker

-Low voltage systems and insulated cable connections, eliminate risk of electrical shock to welders working on electrically preheat weld joints.

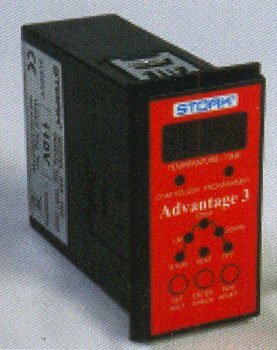

Replacement "Advantage 3" linkable, programmer/controller. Supersedes the "Advantage 2" linkable, programmer/controller. Provide user with greater versatility & flexibility. Each "Advantage 3"output communicates with other "Advantage 3" controllers, controlling zones on the same heat treatment & limiting the differential between separate control zones within a single heat treatment.

When a job requires multiple heat treatment programs, user benefits achieved by:

-Reducing the number of standard 6 channel programmers normally required to heat treat work pieces with different heat treatment cycles

-Eliminating the need for multiple shift working to carry out several separate heat treatment processes for each heat treatment specification.

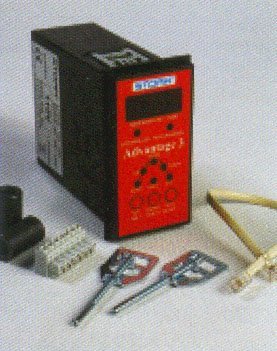

Contains necessary parts &instructions required to upgrade any make /model heat treatment unit to provide additional functionality, user benifits & cost savings provided by "Advantage 3" linkable programmer/controller.

Stork reference:12300

Replacement "Advantage 2" linkable, programmer/controller. Supersede by the improved "Advantage 3" linkable, programmer/ controller though stocks of the "Advantage 2" will be held by STE & remain available until end of 2009.

Stock reference:548-051

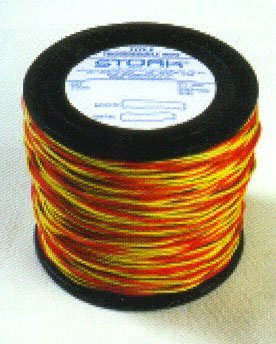

Type K nickel chrome/nickel aluminium thermocouple wire, insulated with high temperature glass braid. Recommended maximum temperature 800C. It used to convert the thermal energy at hot junction of the thermocouple to an electrical mV signal which can then be used by temperature control & recording instruments to accurately record & control the temperature of item being heat treated.

The thermocouple wire is attached directlt to the work piece using the "thermocouple attachment unit " Stock reference:41756(110V unit)/ 41757(230V unit). Conforms to : BS EN 60584-1:1996 part 4, BS EN 60584-2:1993 class 1 & ANSI-MC 96

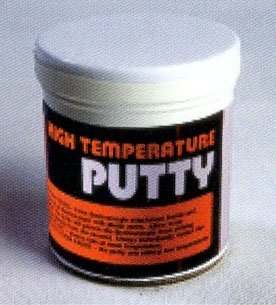

A small portion of the soft putty is fixed over the hot junction of the thermocouple, which attached to the item being heat-treated. Once the putty dries, after 20 minutes, it hardens to protect the hot junction & help avoid possible short circuit of thermocouple wires which would result in temperature control & recording errors.

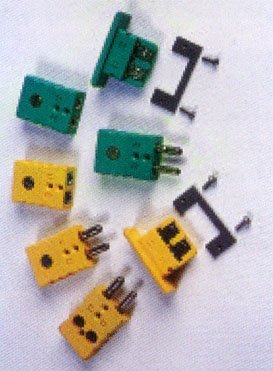

2 types of thermocouple plugs:

-516-111-->used with compensating cable

-516-125-->"Quick connection"plugs are ideally use with thermocouple wire regular connections are required, can attached to thermocouple wire in seconds & reduces waste caused by the loss of terminal covers.

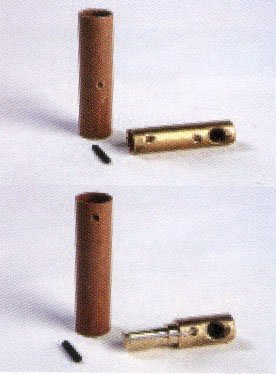

Spare connectors for repair of splitters & heating elements. Stock reference:

-508-009=60A brass male connector

-508-010=60A brass female connector

-508-019=60A fibre male sleeve for use with 508-009

-508-020=60A fibre female sleeve for use with 508-010

-508-022=60A fibre pin for use with 508-019 & 508-020

-508-040/M=12.7mm wide copper shim/metre use with 508-009 & 508-010

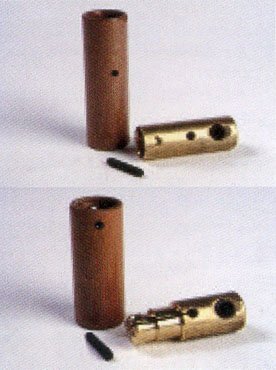

Spare connectors for repair of triple cables sets & splitters. Stock reference:

-508-006=300A brass male connectors

-508-007=300A brass female connector

-508-015=300A fibre male sleeve use with 508-006

-508-016=300A fibre female sleeve use with 508-007

-508-021=300A fibre pin use with 508-015 & 508-016

-508-041/M=19mm wide copper shim/metre use with 508-006 & 508-007
